WALL-05T/WS

Active/passive passive

Transmission method 100 V

Total power rating 80 W

Power rating (RMS) 16/8/4/2 W (100 V) 40 W (8 Ω)

Impedance 8 Ω

Frequency range 80-20,000 Hz

System 2-way

Bass speaker 13 cm (5") bass-midrange speaker

Tweeter 12 mm (½") dome tweeter

Number of speakers 2

Speaker size 5"

Sensitivity 89 dB/W/m

Max. rated SPL 104 dB

Housing material plastic

Colour white

Mounting device mounting bracket

Protection class IP65

Admiss. ambient temp. 0-40 °C

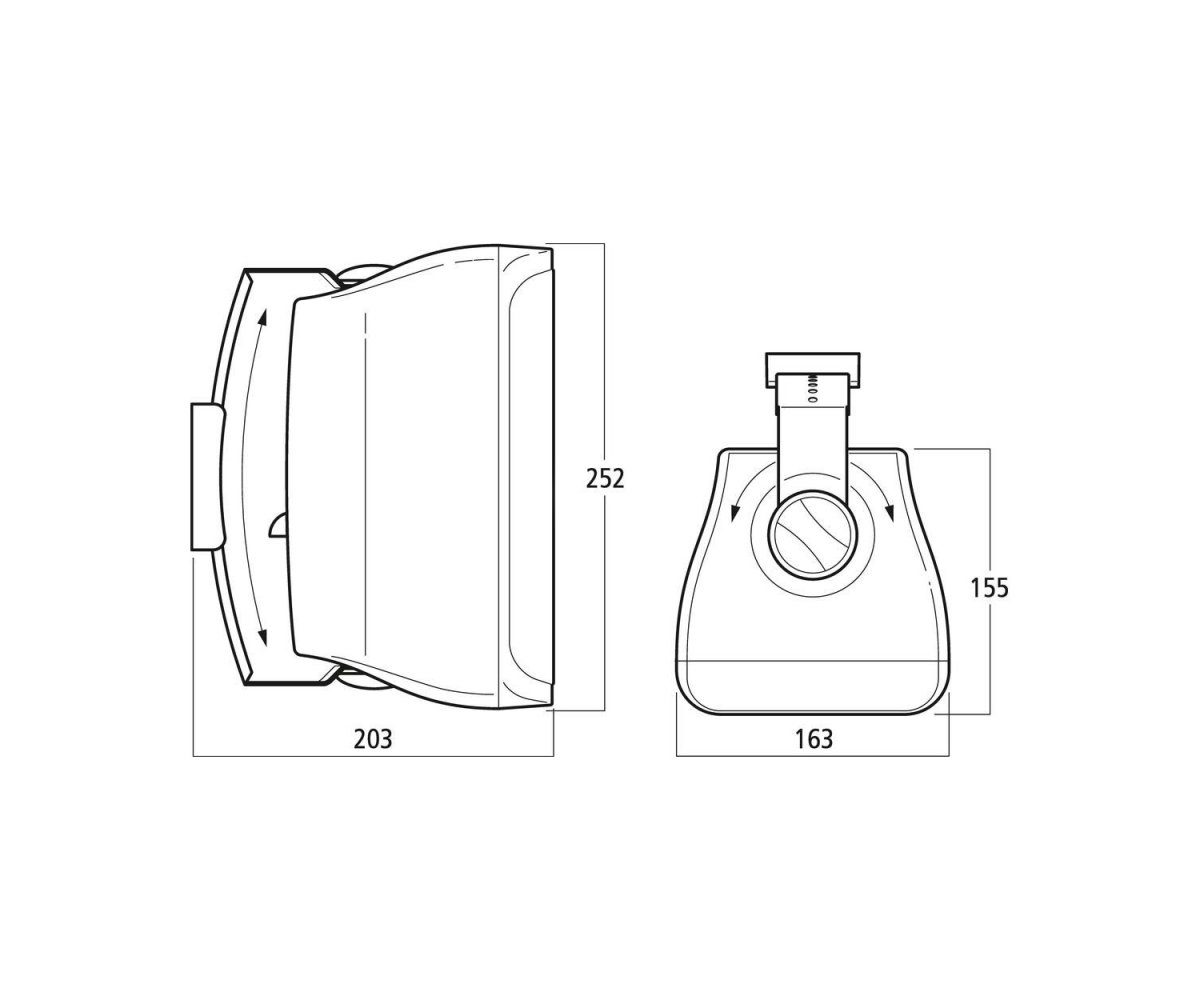

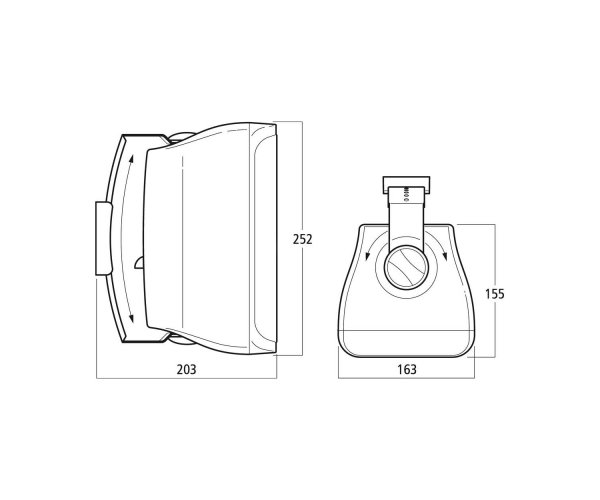

Dimensions 163 x 252 x 203 mm (with bracket)

Width 163 mm

Height 252 mm

Depth 203 mm

Weight 2.6 kg

Inputs spring-load. speaker term.

Other features for pivoting and tilting
