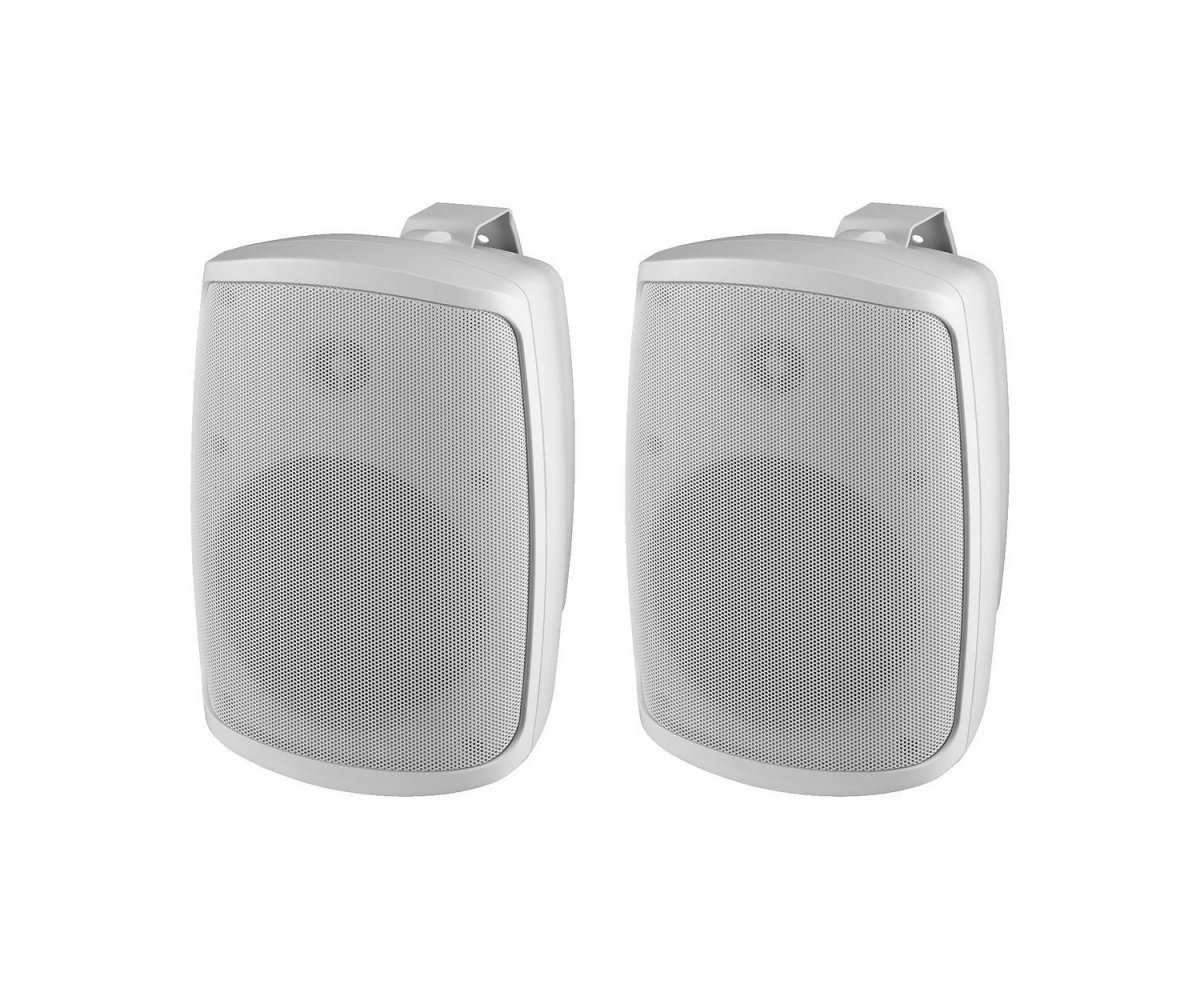

WALL-04T/WS

Active/passive passive

Transmission method 100 V

Total power rating 60 W

Power rating (RMS) 16/8/4/2 W (100 V) 30 W (8 Ω)

Impedance 8 Ω

Frequency range 90-20,000 Hz

System 2-way

Bass speaker 10 cm (4") bass-midrange speaker

Tweeter 12 mm (½") dome tweeter

Number of speakers 2

Speaker size 4"

Sensitivity 87 dB/W/m

Max. rated SPL 100 dB

Housing material plastic

Colour white

Mounting device mounting bracket

Protection class IP65

Admiss. ambient temp. 0-40 °C

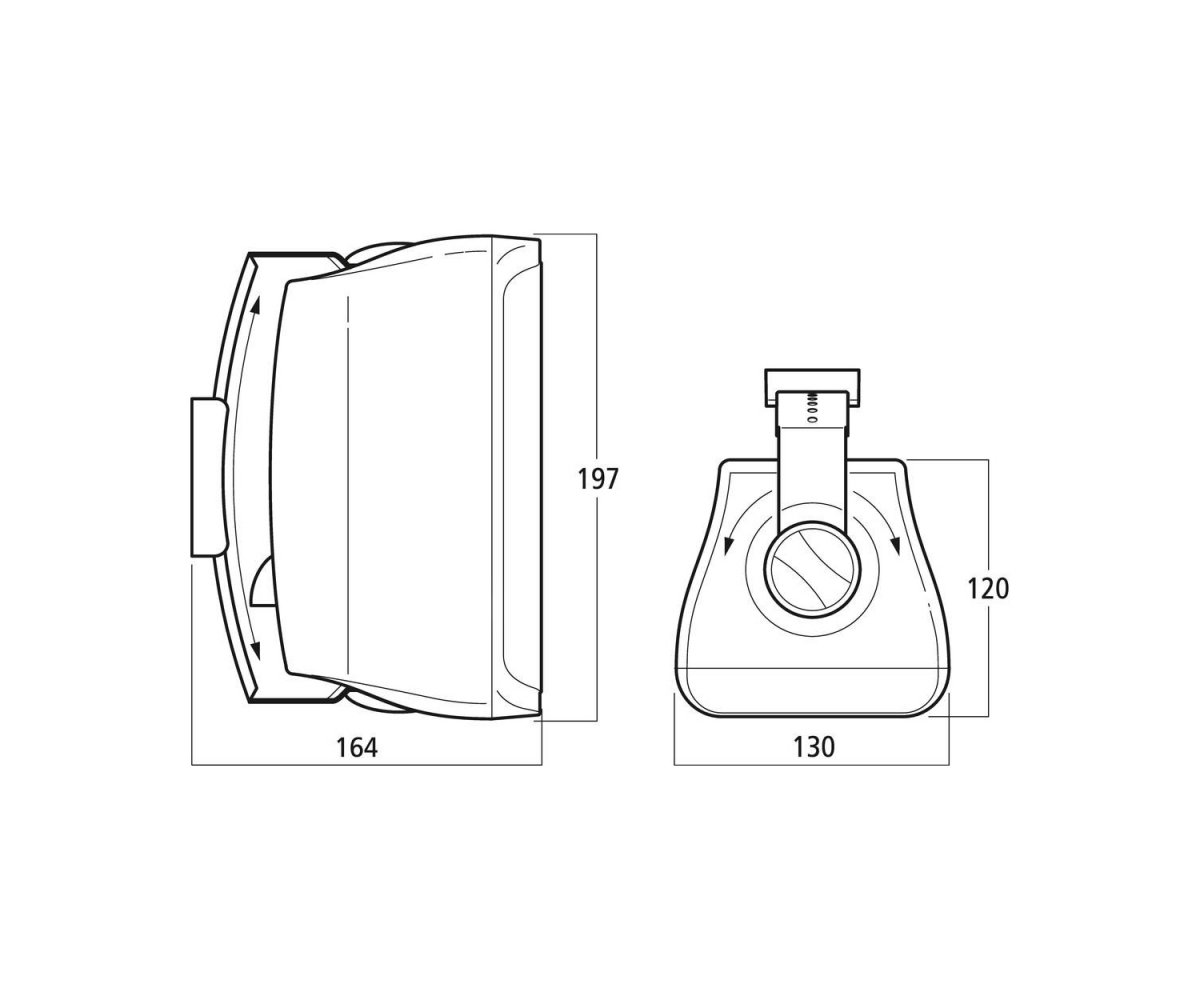

Dimensions 130 x 197 x 164 mm (with bracket)

Width 130 mm

Height 197 mm

Depth 164 mm

Weight 1.8 kg

Inputs spring-load. speaker term.

Other features for pivoting and tilting
