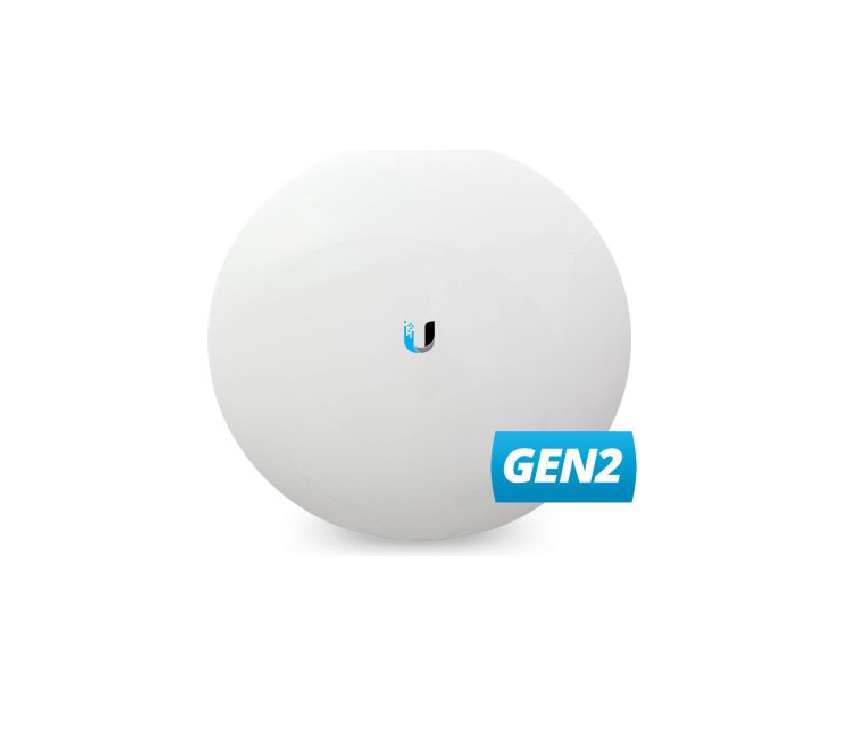

Ubiquiti NanoBeam 5AC Gen2 (450+Mbps)

Prevedenie: Outdoor

Kmitočet: 5 GHz

Štandard: 802.11 ac

Napájanie PoE: Áno

Dátová priepustnosť : 450 Mbps

Popis produktu:

Dimensions (Mount Included) 189 x 189 x 125 mm (7.44 x 7.44 x 4.92")

Weight (Mount Included) 0.530 kg (1.17 lb)

Power Supply 24V, 0.5A Gigabit PoE Adapter (Included)

Max. Power Consumption 8.5W

Gain 19 dBi

Networking Interface (2) 10/100/1000 Ethernet Ports

Wi-Fi for Management

Processor Specs Atheros MIPS 74Kc, 720 MHz

Memory 128 MB DDR2, 8 MB Flash

LEDs Power, Ethernet, (4) Signal Strength

Signal Strength LEDs Software-Adjustable to Correspond to Custom RSSI Levels

Max. VSWR 1.5:1

Channel Sizes PtP Mode PtMP Mode

10/20/30/40/50/60/80 MHz 10/20/30/40 MHz

Polarization Dual Linear

Enclosure Outdoor UV Stabilized Plastic

Mounting Pole-Mount (Kit Included), Wall-Mount

Wind Loading 45.4 N @ 200 km/h (10.2 lbf @ 125 mph)

Wind Survivability 200 km/h (125 mph)

ESD/EMP Protection Air: ± 24 kV, Contact: ± 24 kV

Operating Temperature -40 to 80° C (-40 to 176° F)

Operating Humidity 5 to 95% Noncondensing

Certifcations CE, FCC, IC

RoHS Compliance Yes

Salt Fog Test IEC 68-2-11 (ASTM B117), Equivalent: MIL-STD-810 G Method 509.5

Vibration Test IEC 68-2-6

Temperature Shock Test IEC 68-2-14

UV Test IEC 68-2-5 at 40° C (104° F), Equivalent: ETS 300 019-1-4

Wind-Driven Rain Test ETS 300 019-1-4, Equivalent: MIL-STD-810 G Method 506.5
