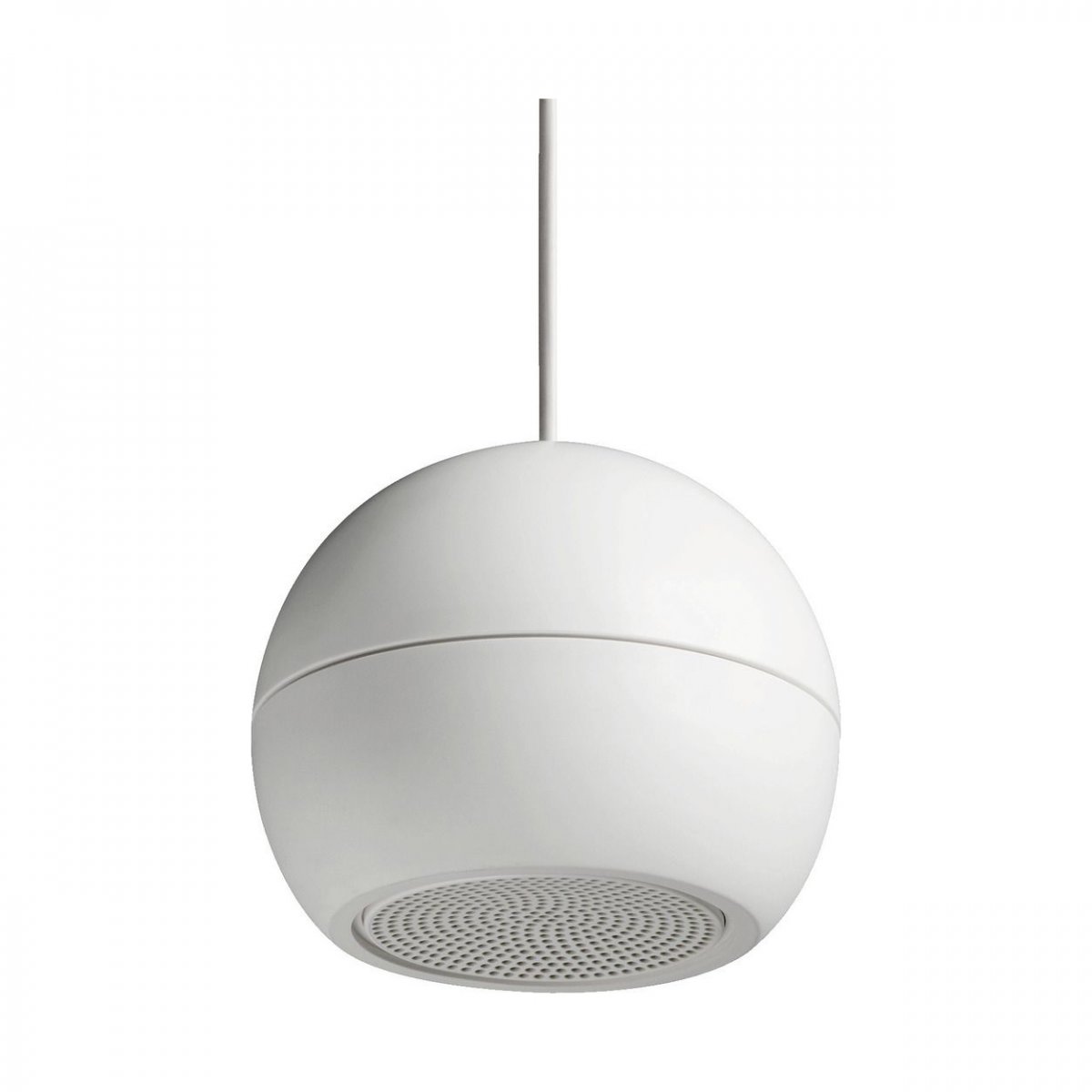

EDL-416EN/WS

Parametre

Active/passive passive

Transmission method 100 V

Power rating (RMS) 16/8/4 W

Frequency range 130-18,000 Hz

System 130 mm full range speaker

Number of speakers 1

Speaker size 13 cm (5")

Sensitivity 89.9 dB/W/m

Max. rated SPL 101 dB

Radiation angle, horizontal 196° (1 kHz)132° (2 kHz)170° (4 kHz)

Radiation angle, vertical 196° (1 kHz)132° (2 kHz)170° (4 kHz)

Housing material ABS

Colour white, RAL 9010

Mounting device canopy

Protection class IP35

Admiss. ambient temp. -20 °C to +80 °C

Dimensions Ø 185 mm x 157 mm

Width Ø 185 mm

Height 157 mm

Weight 1.6 kg

Inputs ceramic terminal with thermal fuse
